Cone fenders

Cone fenders

Cone fenders are an improved version of cell fenders with optimal performance. They present high energy absorption to reaction force ratio and their shape makes them very stable even at large compression angles.

  • Big deflection, high performance.

  • Can be combined with large front panels

  • No performance loss under 10 degrees

  • Wide range of sizes

  • Application for bulk, container, Ro-Ro, cruises Terminals / Oil and LNG facilities / Offshore platforms / Multi user berths

Cone fenders
Cone fenders
Cone fenders

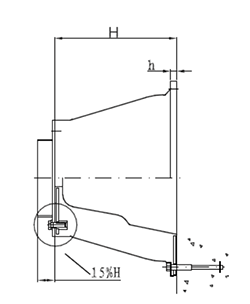

Dimensions (units: mm, kg)
  H h φU φW φS φΒ n-MD d C weight
CONE300 300 13.5 255 450 195 405 4M16 45-65 30 30
CONE350 350 25 300 570 235 510 4-M20 53-73 32 56
CONE400 400 18 340 600 260 540 4-M20 60-80 32 77
CONE500 500 21 425 750 325 675 4-M24 75-95 35 140
CONE600 600 22 510 900 390 810 6-M24 90-110 40 230
CONE700 700 26 595 1050 455 945 6-M30 105-125 50 390
CONE800 800 30 680 1200 520 1080 6-M36 120-140 55 540
CONE900 900 33 765 1350 585 1215 6-M36 135-155 65 755
CONE1000 1000 40 850 1500 650 1350 6-M42 150-170 75 1020
CONE1100 1100 42 935 1650 715 1485 6-M42 165-185 75 1500
CONE1150 1150 42 998 1725 750 1550 6-M42 170-195 75 1600
CONE1200 1200 45 1020 1800 780 1620 8-M42 180-210 80 1960
CONE1300 1300 47 1105 1950 845 1755 8-M48 195-225 80 2400
CONE1400 1400 54 1190 2100 930 1890 8-M52 210-235 80 3000
CONE1600 1600 58 1360 2400 1060 2160 8-M56 240-270 85 4600
CONE1800 1800 75 1530 2880 1190 2625 10-M56 270-290 85 6600
CONE2000 2000 80 1900 3200 1540 2920 10M56 300-320 85 9200



Technical Data
  RL RO RH RS
  reaction force
70%		 energy absorption
72.5%		 reaction force
70%		 energy absorption
72.5%		 reaction force
70%		 energy absorption
72.5%		 reaction force
70%		 energy absorption
72.5%
CONE300 R 59 65 68 75 84 94 104 115
E 7.7 8.3 9.2 10 11.8 12 14.4 15.6
CONE350 R 80 88 93 105 114 125 141 155
E 12.5 13.5 14.8 16 19 20 23.1 25
CONE400 R 105 115 124 137 150 165 185 204
E 18 19.6 22 24 28.3 30.8 34.6 37.5
CONE500 R 165 193 200 232 268 311 335 380
E 37 41 47 50 63 70 79 90
CONE600 R 225 258 283 319 382 429 480 542
E 75 85 94 104 127 129 157 161
CONE700 R 308 341 384 426 522 568 652 691
E 120 124 150 154 181 192 235 243
CONE800 R 402 428 502 576 706 833 862 930
E 179 208 224 252 294 316 368 380
CONE900 R 508 558 635 703 862 957 1078 1189
E 255 270 306 334 399 431 494 517
CONE1000 R 628 698 784 882 1078 1213 1339 1507
E 350 380 437 478 541 288 669 735
CONE1100 R 800 833 927 1019 1146 1259 1430 1570
E 408 432 495 527 650 681 830 865
CONE1150 R 830 919 1038 1152 1392 1593 1764 1985
E 532 588 666 717 882 938 1029 1103
CONE1200 R 890 979 1106 1229 1396 1536 1746 1920
E 560 583 705 735 882 919 1103 1149
CONE1300 R 1125 1200 1320 1537 1705 1900 2125 2312
E 750 800 1043 1077 1310 1360 1585 1640
CONE1400 R 1150 1278 1443 1604 1804 2005 2255 2506
E 860 896 1079 1124 1349 1405 1686 1756
CONE1600 R 1418 1575 1814 2016 2268 2520 3024 3150
E 1234 1285 1548 1613 1935 2016 2419 2520
CONE1800 R 1912 2125 2401 2667 3000 3333 3750 4166
E 1804 1880 2264 2359 2830 2948 3538 3686
CONE2000 R 1660 2960 2990 3320 3541 3933 4262 4750
E 2840 3060 3192 3430 3806 4070 4637 4935
PERFORMANCE TOLLERANCE: +-10%
OTHER PERFORMANCES ARE AVAILABLE ON CUSTOMER'S REQUESTS
