Home » Products » Wire Ropes » Rotation Resistant Wire Ropes » 4×39 Fiber Core
Rotation Resistant • 4 Strand
This is a 4-stranded rotation resistant rope mainly for use on Japanese crane brands.
It is supplied in drawn galvanized finish and fully lubricated for long service life.
Robust construction for many hours of usage on board. Tensile strength is minimum 1960 N/mm2.

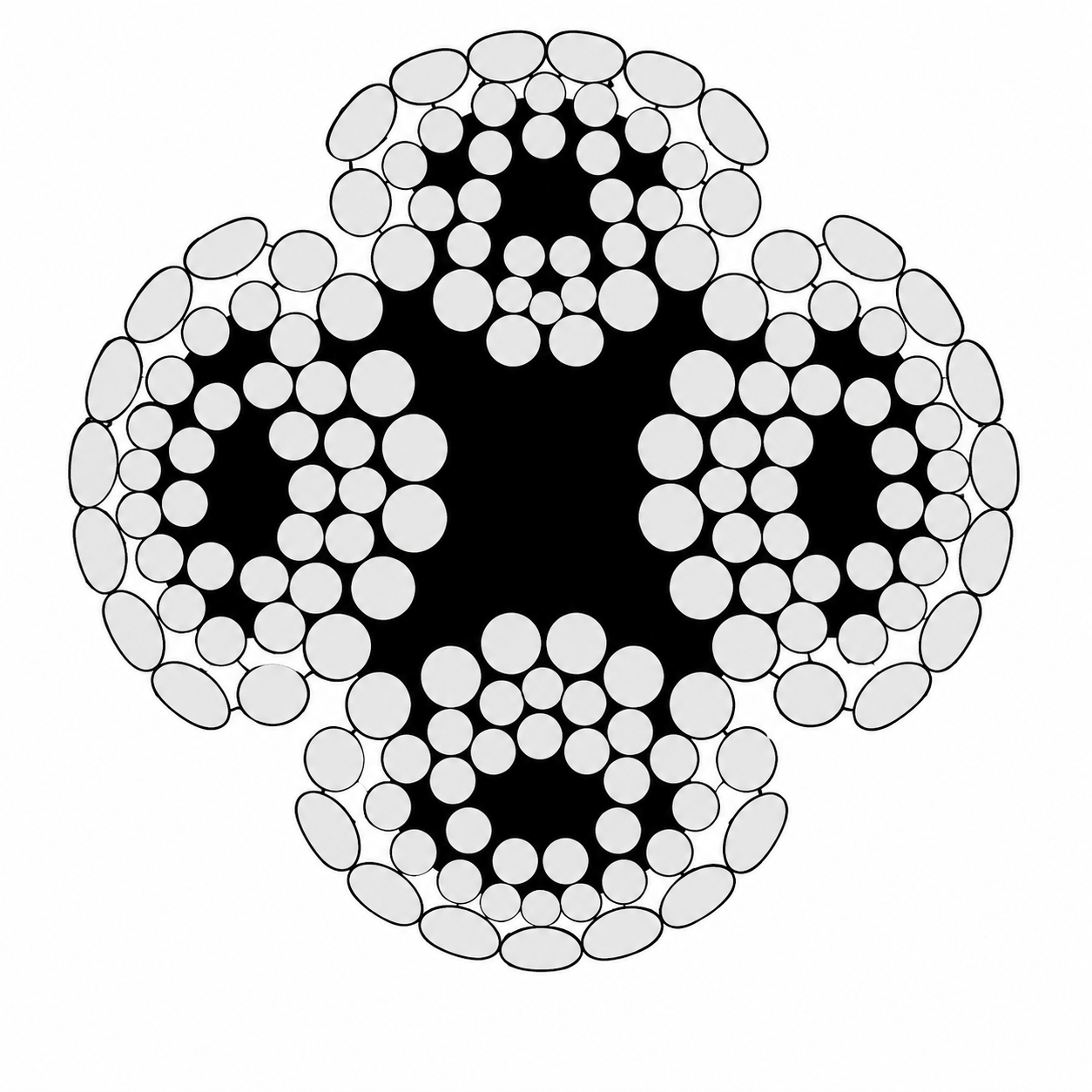

FC+4x(FC+9 /15+15) • 4xSeS(39)+FC
Nominal diameter | Approx. weight | Minimum breaking load 1960N/mm² |
---|---|---|
mm | Kg/m | kN |
8 | 0.257 | 44.3 |
9 | 0.326 | 56.1 |
10 | 0.402 | 69.2 |
12 | 0.579 | 96.5 |
12.5 | 0.628 | 108.9 |
14 | 0.788 | 136.3 |
16 | 1.03 | 177.5 |
18 | 1.30 | 225.6 |
19 | 1.45 | 251.1 |
20 | 1.61 | 277.5 |
22 | 1.95 | 335.4 |
22.4 | 2.02 | 348.1 |
24 | 2.32 | 385.4 |
25 | 2.51 | 432.5 |
26 | 2.72 | 466.8 |
28 | 3.15 | 543.3 |
30 | 3.62 | 623.7 |
31.5 | 4.05 | 687.5 |
32 | 4.20 | 709.0 |
33.5 | 4.60 | 777.7 |
34 | 4.79 | 801.2 |
35.5 | 5.20 | 872.8 |
36 | 5.30 | 897.3 |
37.5 | 5.78 | 973.8 |
38 | 5.90 | 999.3 |
40 | 6.60 | 1078.7 |
