Designed for quick, secure bolt-on installation without the need for on-site welding. Manufactured from high-purity marine alloys to provide reliable, long-lasting cathodic protection for ship hulls and specialized marine structures.

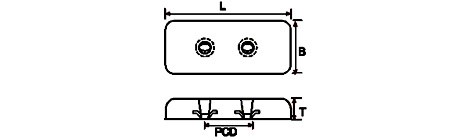

| ANODE TYPE | DIMENSIONS (mm) | WEIGHT (kg) | ||||
|---|---|---|---|---|---|---|
| L | B | T | PCD | NET | GROSS | |
| N60ZBH | 300 | 150 | 26 | 160 | 5.6 | 5.9 |
| N75ZBH | 300 | 150 | 32 | 160 | 7 | 7.3 |
| N85ZBH | 300 | 150 | 36 | 160 | 8 | 8.3 |
| N100ZBH | 300 | 150 | 46 | 160 | 9.7 | 10 |
| N130ZBH | 300 | 150 | 56 | 160 | 12.7 | 13 |
| N220ZBH | 300 | 150 | 82 | 160 | 21.7 | 22 |
Lightweight, high-efficiency sacrificial aluminium anodes engineered for convenient bolt-on hull installation. Ideal for sea water applications, offering excellent current capacity and easy replacement during drydocking.
| ANODE TYPE | DIMENSIONS (mm) | WEIGHT (kg) | ||||
|---|---|---|---|---|---|---|
| L | B | T | PCD | NET | GROSS | |
| N27ABH | 300 | 150 | 26 | 160 | 2.4 | 2.7 |
| N30ABH | 300 | 150 | 32 | 160 | 2.6 | 2.9 |
| N35ABH | 300 | 150 | 36 | 160 | 3.2 | 3.5 |
| N50ABH | 300 | 150 | 46 | 160 | 4.3 | 4.6 |
| N55ABH | 300 | 150 | 56 | 160 | 5.2 | 5.5 |
| N85ABH | 300 | 150 | 82 | 160 | 8.2 | 8.5 |
All weights and dimensions are subject to normal variations in material densities.
A range of standard zink or aluminium anodes is illustrated above, alternative configurations may be cast to requirements.
