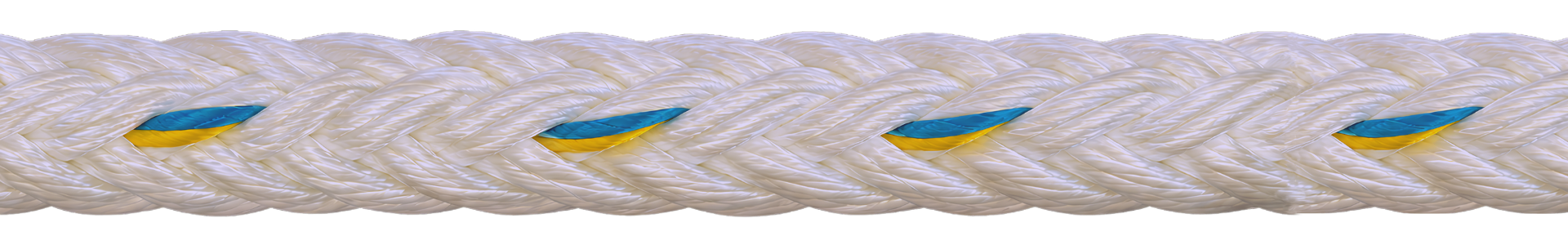

IMPROVED 24-12 ropes are constructed according to EN ISO 10556 § 5.2.1. The cover yarns of each strand of fiber ropes are made with polyester fibers covering a polyolefin core and contain a minimum of 40 % by mass of polyester fiber.
Their mechanically balanced structure, protects the strand layers against abrasion while achieving high breaking strengths.
APPLICATIONS: MOORING – ANCHORING – TAILS
IMPROVED 24-12 ropes’ layout is ideal for applications requiring floating properties and resistance to abrasion without compromising the axial strength.
They have very good resistance to sunlight & chemicals, good resistance to cyclic loading, and their efficiency remains the same both in wet and dry conditions. Best-selling IMPROVED 24-12 is definitely an excellent multi-purpose rope.
IMPROVED 24-12 ropes are produced according to international standards such as EN ISO 10556. They are user-friendly, rotation-resistant, and easy to splice. They comply with the latest regulations and recommendations of OCIMF for the safe mooring of tankers.
| Size (Circ) | Size (Diam) | Weight ( +/- 5%) | Min. Breaking Load | |
|---|---|---|---|---|
| Inch | mm | Kilos/ 100m | Kilos/ 220m | Tons |
| 41/2 | 36 | 66.5 | 146 | 28 |
| 5 | 40 | 79 | 174 | 34 |
| 51/2 | 44 | 96 | 211 | 40 |
| 6 | 48 | 115 | 253 | 47 |
| 61/2 | 52 | 136 | 299 | 53 |
| 7 | 56 | 156 | 342 | 62 |
| 71/2 | 60 | 180 | 396 | 69 |
| 8 | 64 | 208 | 458 | 79 |
| 81/2 | 68 | 234 | 515 | 88 |
| 9 | 72 | 260 | 572 | 98 |
| 91/2 | 76 | 290 | 638 | 110 |
| 10 | 80 | 321 | 706 | 121 |
| 101/2 | 84 | 352 | 774 | 132 |
| 11 | 88 | 383 | 842 | 144 |
| 12 | 96 | 464 | 1020 | 169 |
More sizes are available upon request.
