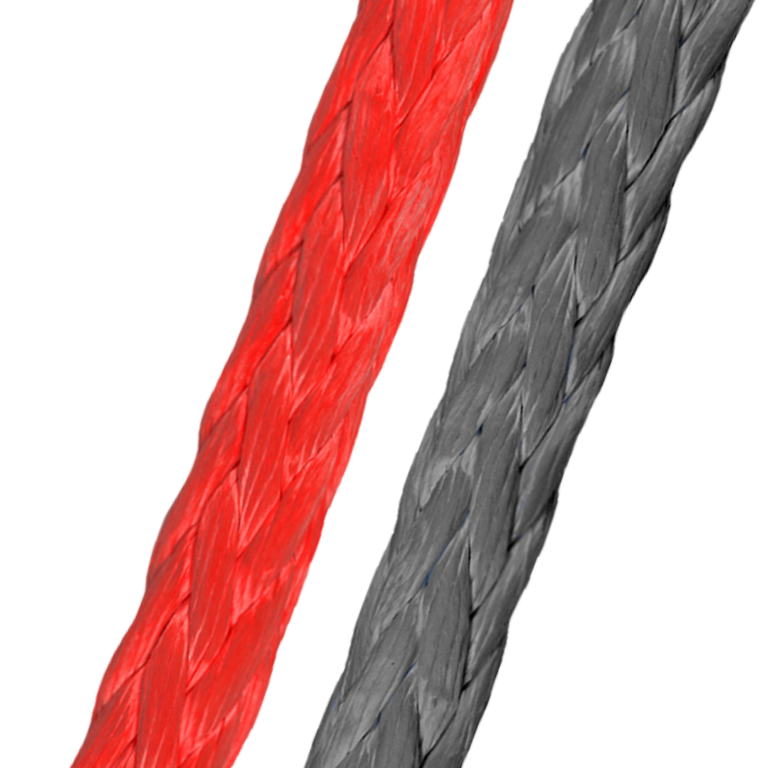

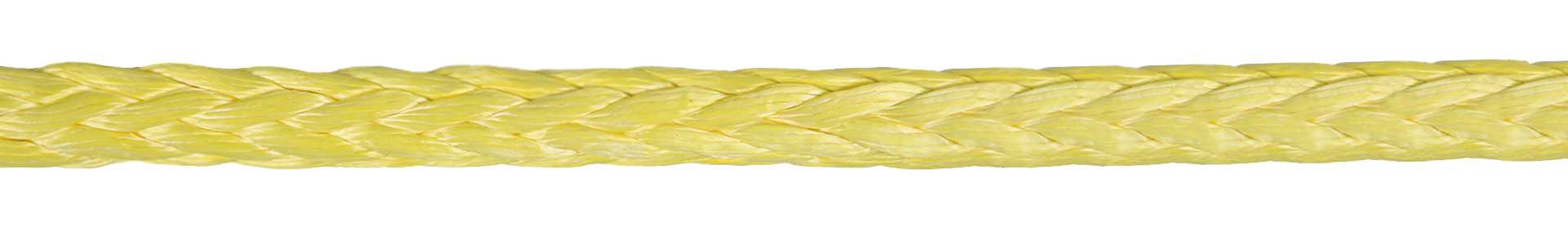

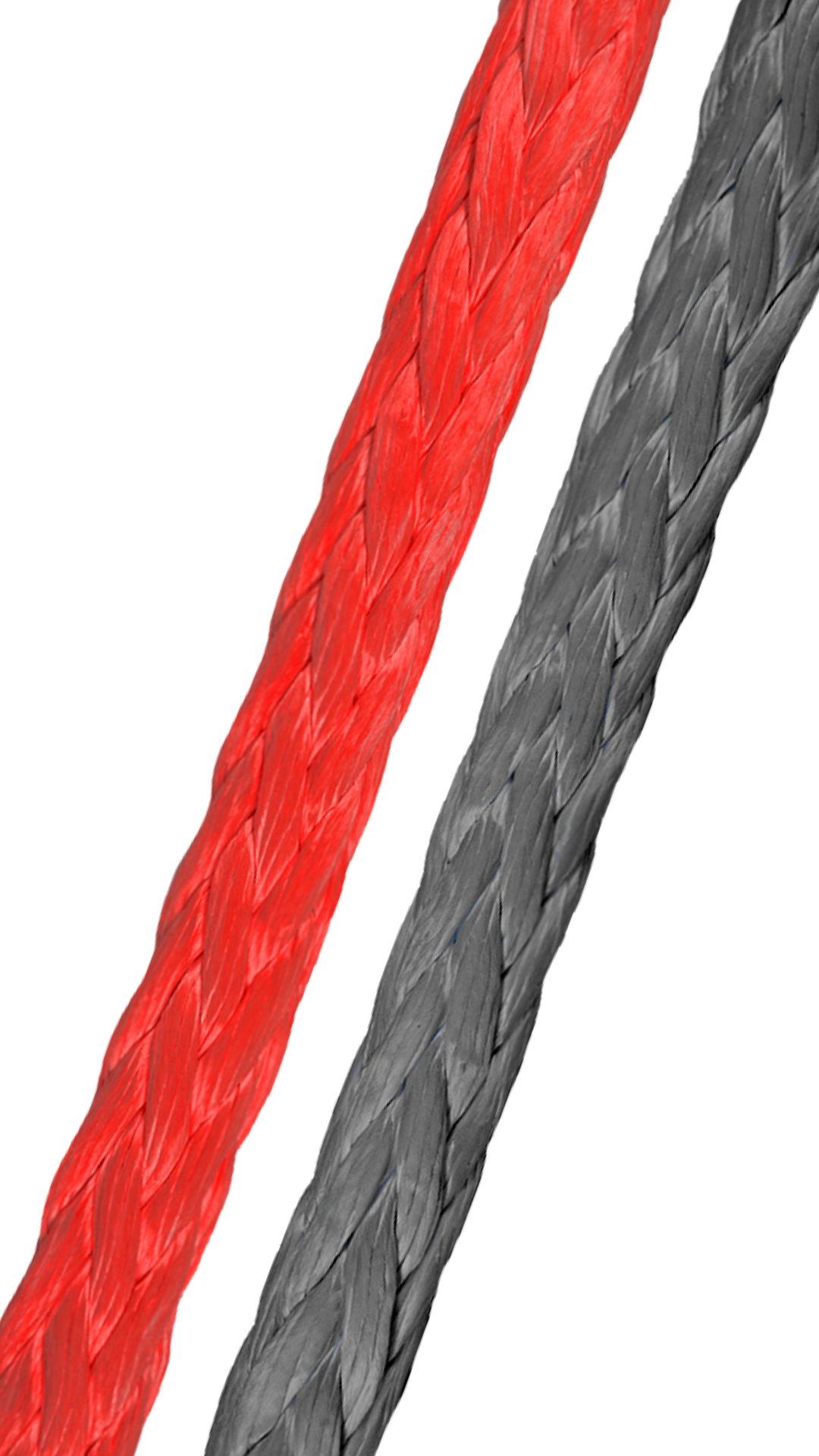

KATRADIS Cored Siri rope is an HMPE (Dyneema type) material rope, without cover, providing iron steel strength.
| Diameter | Nom. Size (Circ) | Br. Load | Reel Length | Reel Weight | Packing | Core |
|---|---|---|---|---|---|---|
| mm | inches | kg | meters | kg | Type | Material |
| 6 | 3/4” | 5.500 | 200 | 2,6 | Bobbin | 12STR HMPE |
| 8 | 1” | 8.200 | 200 | 4,5 | Bobbin | 12STR HMPE |
| 10 | 1 1/4” | 10.500 | 200 | 6,8 | Bobbin | 12STR HMPE |
| 12 | 1 1/2” | 14.850 | 200 | 9,6 | Bobbin | 12STR HMPE |
| 14 | 1 3/4” | 17.950 | 200 | 13,0 | Bobbin | 12STR HMPE |
| 16 | 2” | 21.200 | 100 | 18,5 | Bobbin | 12STR HMPE |
| 18 | 2 1/4” | 26.000 | 100 | 24,0 | Bobbin | 12STR HMPE |
| 20 | 2 1/2” | 34.200 | 100 | 27,0 | Bobbin | 12STR HMPE |
| 22 | 2 3/4” | 45.400 | 100 | 32,0 | Coil | 12STR HMPE |
| 24 | 3” | 52.500 | 100 | 37,0 | Coil | 12STR HMPE |
| 26 | 3 1/4” | 59.600 | 100 | 43,5 | Coil | 12STR HMPE |
| 28 | 3 1/2” | 67.150 | 100 | 51,0 | Coil | 12STR HMPE |
| 30 | 3 3/4” | 74.250 | 100 | 60,0 | Coil | 12STR HMPE |
