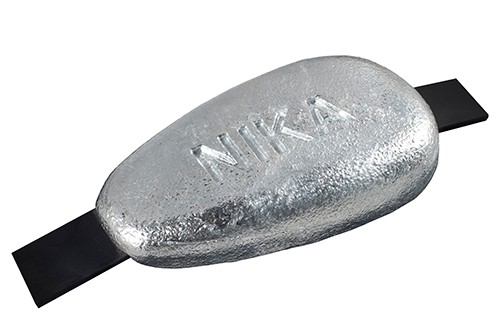

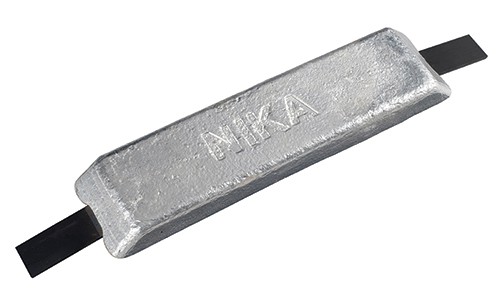

| CATHODIC PROTECTION TYPE | DIMENSIONS (mm) | WEIGHT (kg) | INSERT (mm) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | H | NET | GROSS | ||
| N30ZH | 170 | 240 | 100 | 40 | 2.7 | 3.0 | 30×3 |
| N75ZH | 300 | 400 | 160 | 35 | 7.0 | 7.5 | 40×6 |
| N95ZH | 300 | 400 | 160 | 45 | 8.6 | 9.5 | 50×6 |
| CATHODIC PROTECTION TYPE | DIMENSIONS (mm) | WEIGHT (kg) | INSERT (mm) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | H | NET | GROSS | ||
| N55ZH | 300 | 400 | 90 | 40 | 5.0 | 5.5 | 40×6 |
| N125ZH | 465 | 565 | 110 | 40 | 12.0 | 12.5 | 40×6 |
| N165ZH | 520 | 620 | 120 | 40 | 15.3 | 16.5 | 50×6 |
| N230ZH | 680 | 780 | 128 | 40 | 21.5 | 23.0 | 50×6 |
| CATHODIC PROTECTION TYPE | DIMENSIONS (mm) | WEIGHT (kg) | INSERT (mm) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | H | NET | GROSS | ||
| N30AH | 300 | 400 | 90 | 40 | 2.3 | 3.0 | 40×6 |
| Ν55ΑΗ | 460 | 560 | 110 | 40 | 4.6 | 5.5 | 50×6 |
| Ν80ΑΗ | 520 | 620 | 120 | 40 | 7.0 | 8.0 | 50×6 |
| Ν105ΑΗ | 680 | 780 | 128 | 40 | 9.3 | 10.5 | 50×6 |
| Ν125ΑΗ | 800 | 900 | 120 | 40 | 11.0 | 12.5 | 50×6 |
| Ν155ΑΗ | 1000 | 1100 | 120 | 45 | 13.5 | 15.5 | 50×6 |

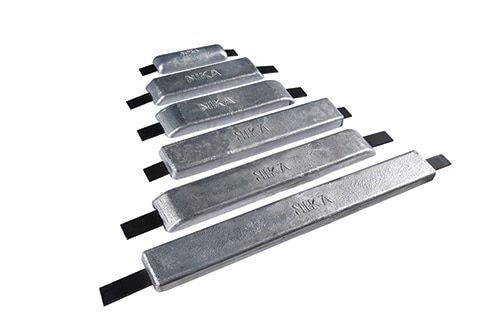

All weights and dimensions are subject to normal variations in material densities. A range of standard zink or aluminum anodes is illustrated above, alternative configurations may be cast to requirements.
