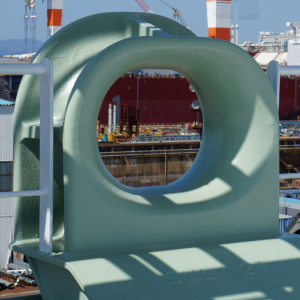

Our stock consists of various types of PANAMA CHOCKS deck or bullwork mounting in accordance to OCIMF requirements in various sizes.
All materials are covered by Class Certificates.
| NOM. SIZE | DIMENSIONS (m.m.) | MASS (Kg) | |||
|---|---|---|---|---|---|
| L | L1 | H1 | H2 | ||
| 310 | 310 | 708 | 639 | 541 | 253 |
| 360 | 360 | 760 | 640 | 542 | 289 |
| 400 | 400 | 804 | 642 | 545 | 323 |
| 450 | 450 | 856 | 643 | 547 | 351 |
| 500 | 500 | 908 | 644 | 549 | 395 |
| NOM. SIZE | DIMENSIONS (m.m.) | MASS (Kg) | |||
|---|---|---|---|---|---|
| L | L2 | L3 | H1 | ||
| 310 | 310 | 734 | 652 | 684 | 276 |
| 360 | 360 | 788 | 701 | 688 | 305 |
| 400 | 400 | 832 | 750 | 692 | 344 |
| 450 | 450 | 886 | 802 | 696 | 385 |
| 500 | 500 | 940 | 854 | 700 | 422 |
| NOM. SIZE | DIMENSIONS (m.m.) | MASS (kgr.) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| 600×450 | 600 | 450 | 1360 | 1000 | 560 | 740 |
| NOM. SIZE | DIMENSIONS (m.m.) | MASS (kgr.) | Dia. of Wire Rope (mm) | ||||
|---|---|---|---|---|---|---|---|
| L | L1 | B | H | H1 | |||
| 100 | 100 | 170 | 60 | 76 | 141 | 4 | 14 |
| 150 | 150 | 250 | 90 | 110 | 205 | 11 | 16 |
| 200 | 200 | 340 | 120 | 150 | 280 | 24 | 18 |
| 250 | 250 | 434 | 160 | 200 | 372 | 48 | 20 |
| 300 | 300 | 528 | 200 | 250 | 464 | 82 | 22 |
| 350 | 350 | 600 | 220 | 250 | 485 | 103 | 24 |
| 400 | 400 | 672 | 240 | 250 | 506 | 136 | 26 |
| 450 | 450 | 746 | 260 | 250 | 528 | 184 | 30 |
| 500 | 500 | 820 | 280 | 250 | 550 | 232 | 36 |
