Tug Fenders

advanced divider

Tug cylindrical fenders are highly versatile and available in a wide range of diameters and lengths. Their ability to be custom-curved makes them ideal for installation on the bow or stern of various tugboats and workboats. These heavy-duty marine fenders provide excellent energy absorption and impact protection, making them the preferred choice for primary pushing applications in tug operations.

  • Low rolling resistance
  • Low maintenance cost
  • Can be used in single or multiple stacks
  • High impact absorption in demanding marine operations

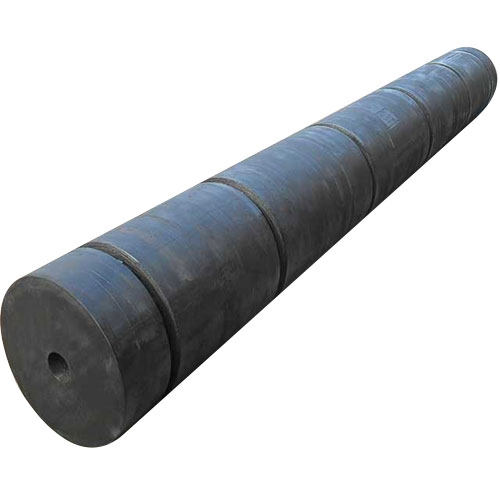

Tug fender cylindrical rubber with drilled center hole for marine vessel impact absorption
Submit RFQ (Request for Quotation)

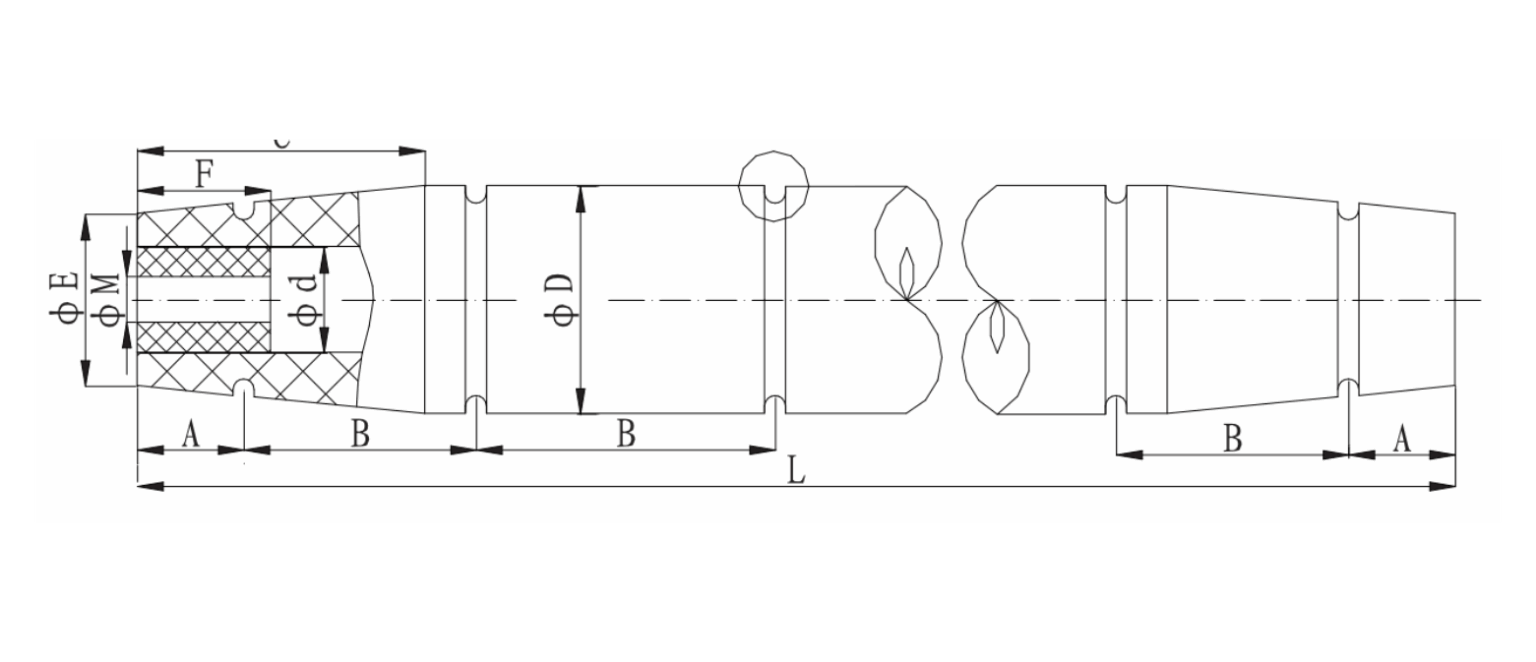

Technical drawing of cylindrical tug fender with conical ends and dimensions.

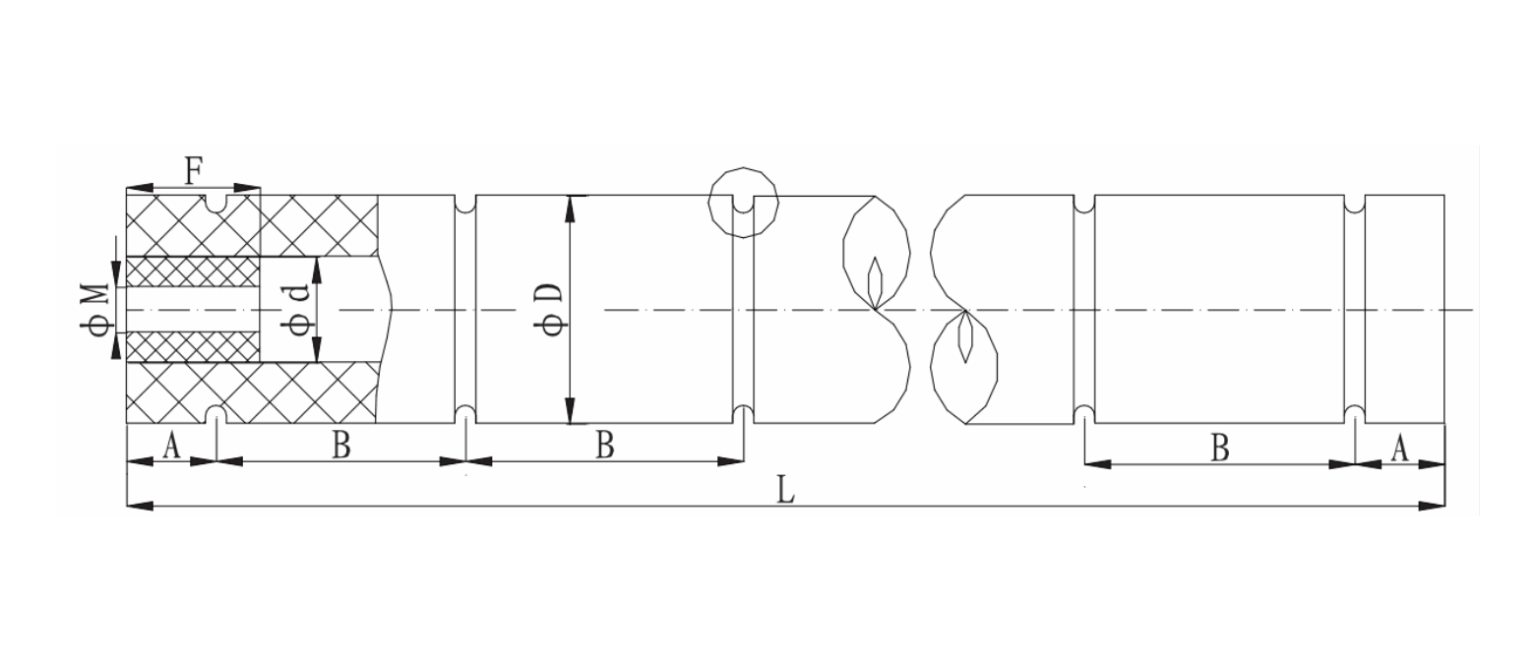

Technical drawing of straight cylindrical tug fender with mounting dimensions.

Specifications

D*d E Amax. Bmax. C M F Weight
250*125 190 200 570 500 75 300 47
300*150 225 225 600 700 75 350 68
380*190 280 225 650 800 100 400 110
400*200 300 250 670 800 100 400 122
450*225 350 250 700 850 100 400 155
480*240 350 250 700 850 100 400 176
500*250 375 280 730 900 100 400 190
540*270 375 280 730 900 100 400 223
600*300 450 300 800 900 125 500 275
700*350 500 350 870 950 125 500 375
800*400 600 350 930 1000 125 500 490
900*450 675 350 1000 1100 150 500 620

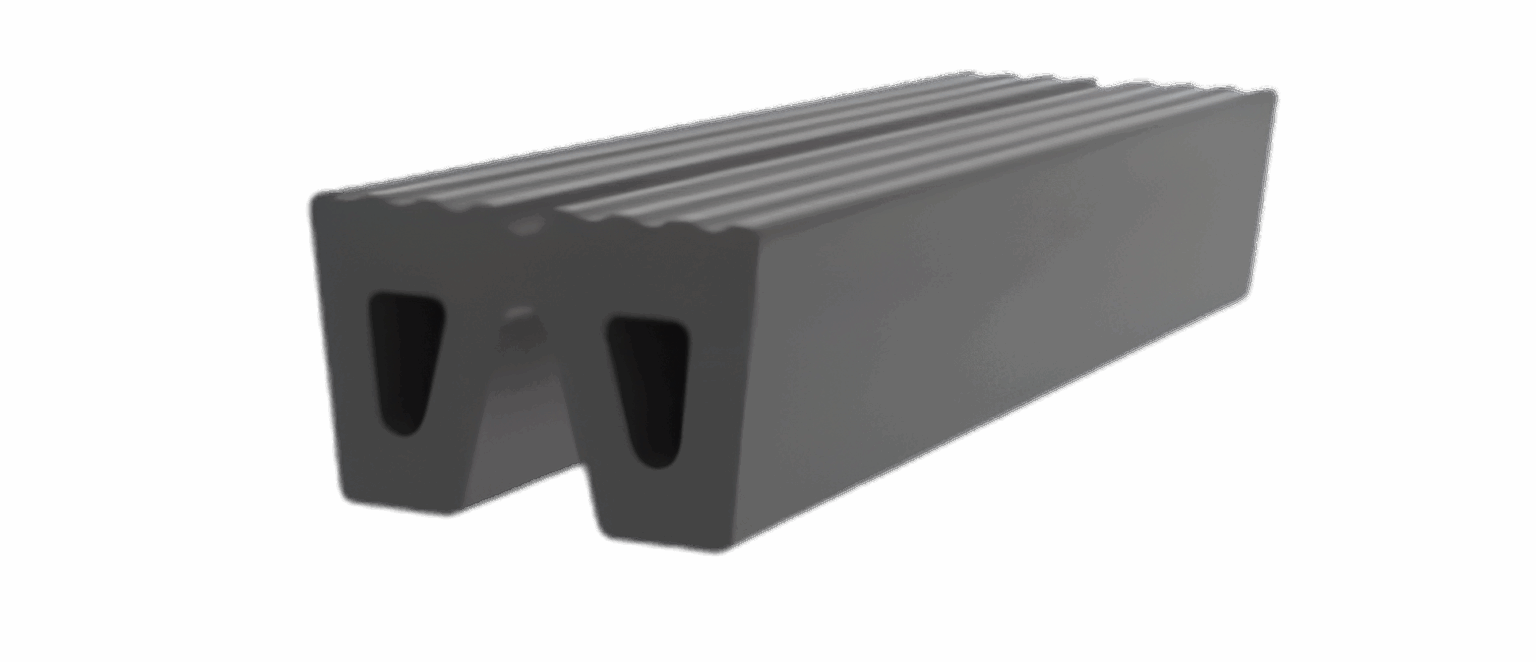

W-type rubber fender for heavy-duty marine berthing protection.

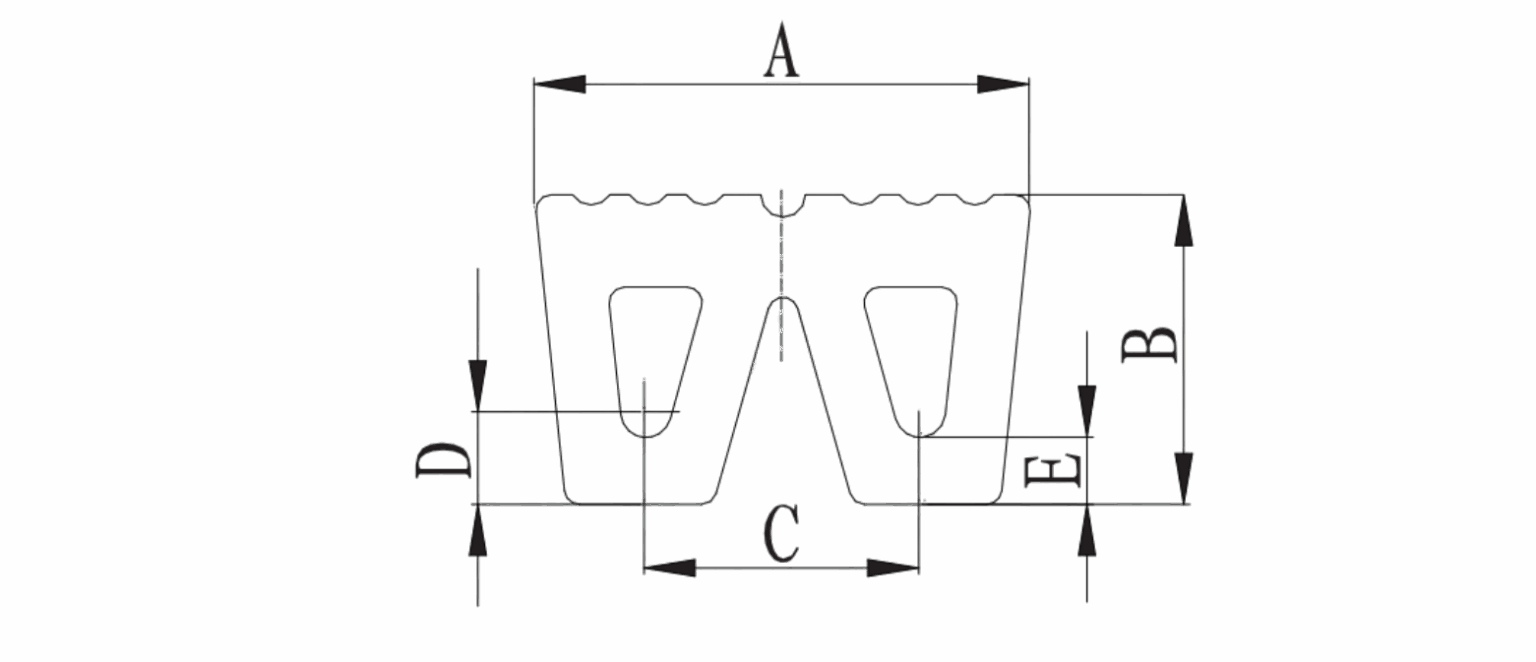

Technical drawing of W-type rubber fender with mounting holes and dimensions.

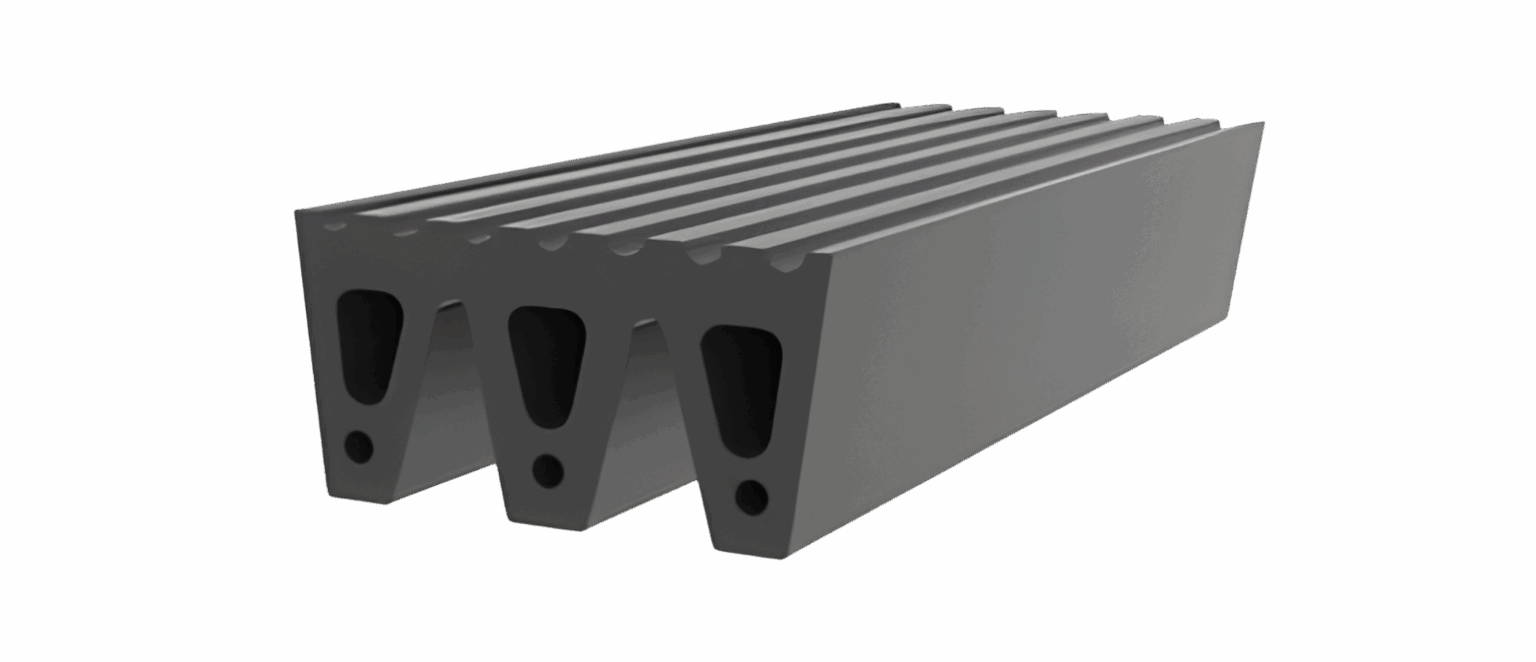

Triple-leg M-type marine rubber fender for high-performance docking protection.

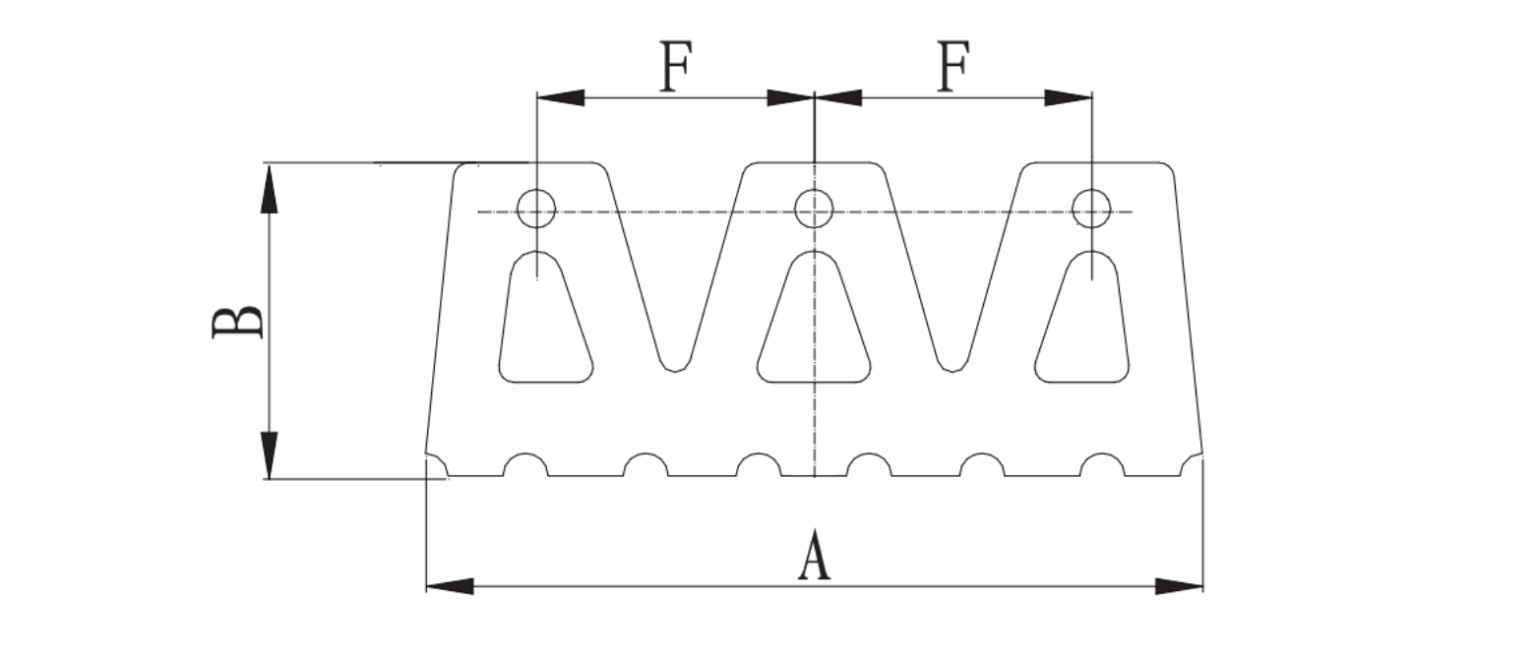

Technical diagram of M-type rubber fender with dimensional labels A, B, C, D, and E.
W FENDERS M FENDERS
Type A B C D E Lmax. Weight A B F Lmax. Weight
W320-200 320 200 180 67 50 2000 59 M400 400 200 150 2000 60
W400-250 400 250 220 75 55 2000 87 M500 500 250 190 2000 95
W480-300 480 300 265 90 65 2000 129 M600 600 300 230 2000 142
W500-450 500 450 270 100 75 2000 193
