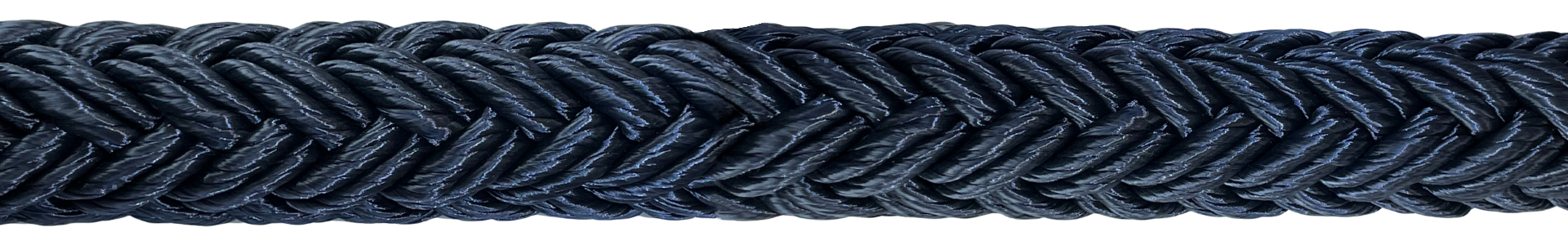

Sealite 24-12 ropes have been developed especially for the mooring operations of Cruise Vessels offering a unique combination of strength & floatability. Their construction not only enhances rope handling and performance during port maneuvers but also ensures long-lasting resilience in the harsh marine environment.
Sealite 24-12 ropes’ layout is ideal for applications requiring floating properties and resistance to abrasion without compromising the axial strength. The cover yarns of each strand of fiber ropes are made with polyester fibers covering a polyolefin core and contain a minimum of 40 % by mass of polyester fiber.
They have very good resistance to sunlight & chemicals, good resistance to cyclic loading, and their efficiency remains the same both in wet and dry conditions. Best-selling Sealite 24-12 is definitely an excellent multi-purpose rope for Cruise Vessels.
Sealite 24-12 ropes are produced according to international standards such as EN ISO 10556. They are user-friendly, rotation-resistant, and easy to splice.
Nom. Size (Diam) |
Nom. Size (Circ) |
Weight (+/- 5%) | MBL (acc. ISO 2307) |
LDBF (acc. MEG4) |
|
---|---|---|---|---|---|
mm | inches | kg / 100m mtr | kg / 220 mtr | tn | tn |
24 | 3” | 29.0 | 63.8 | 12.5 | 11.3 |
28 | 3 1/2” | 41.0 | 90.2 | 16.0 | 14.4 |
32 | 4” | 59.0 | 129.8 | 21.5 | 19.4 |
36 | 4 1/2” | 66.5 | 146.3 | 28.1 | 25.5 |
40 | 5” | 79.0 | 173.8 | 34.5 | 31.4 |
44 | 5 1/2” | 96.0 | 211.2 | 40.8 | 37.1 |
48 | 6” | 115.0 | 253.0 | 48.1 | 43.7 |
52 | 6 1/2” | 136.0 | 299.2 | 54.3 | 49.4 |
56 | 7” | 156.0 | 343.2 | 63.8 | 58.0 |
60 | 7 1/2” | 180.0 | 396.0 | 70.1 | 63.7 |
64 | 8” | 208.0 | 457.6 | 81.5 | 74.1 |
68 | 8 1/2” | 234.0 | 514.8 | 89.9 | 81.7 |
72 | 9” | 260.0 | 572.0 | 100.3 | 91.2 |
76 | 9 1/2” | 290.0 | 638.0 | 112.9 | 102.6 |
80 | 10” | 321.0 | 706.2 | 125.4 | 114.0 |
84 | 10 1/2” | 352.0 | 774.4 | 134.9 | 122.6 |
88 | 11” | 383.0 | 842.6 | 141.9 | 129.0 |
92 | 11 1/2” | 423.5 | 931.7 | 152.4 | 138.6 |
96 | 12” | 464.0 | 1020.8 | 166.0 | 150.0 |
100 | 12 1/2” | 500.0 | 1100.0 | 172.3 | 156.6 |
104 | 13” | 536.0 | 1179.2 | 182.0 | 163.8 |
LDBF: Line Design Break Force
MBL: Minimum Breaking Load
more sizes available upon request
