Marine Pedestal SMART K

advanced divider

Model SMART K pedestal is constructed from durable polymer HDPE with ADT UV protection,
offering resilience in harsh marine conditions. It provides IP56 and optional IP67 protection,
ensuring safety against dust and water. With various single and three-phase socket options,
high-efficiency LED lighting, and secure lockable access, it meets diverse power and water
distribution needs

  • Made from durable HDPE with ADT UV protection for extreme marine conditions
  • Equipped with IP56 standard and optional IP67 protection against dust and water
  • Offers single and three-phase socket options with high-efficiency LED lighting
  • Includes smart metering for electricity and water with CE compliance
  • Features lockable access, nickel-plated brass valves, and quick coupling systems

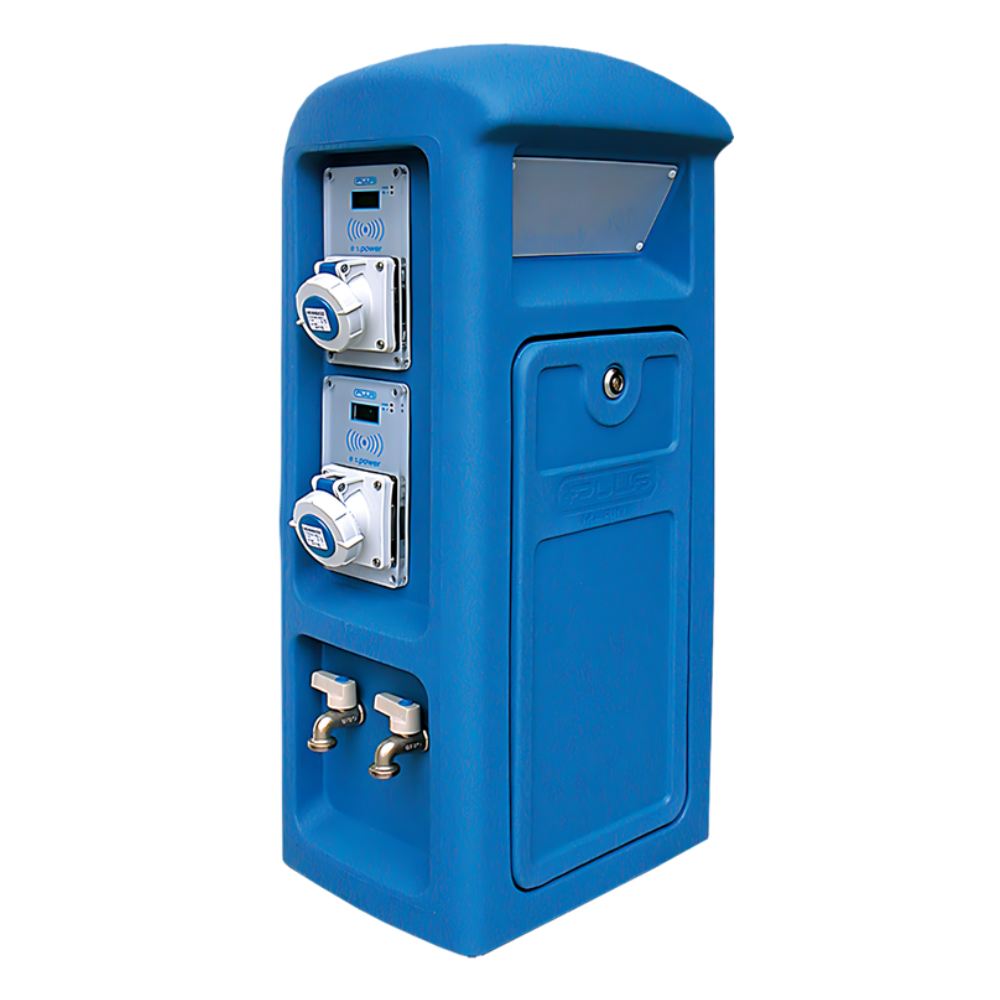

Marine Pedestal SMART K – Blue marina utility pedestal with power sockets, water taps, and smart metering.
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

Advanced metering systems for electricity and water usage are included, making the SMART K a versatile and reliable choice for modern marinas

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling through quick coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing Material POLYMER HDPE/ADT UV PROTECTION
Dimensions (DxLxH MM) 265x350x800
Pedestal Protection IP 56 STANDARD YES
IP 67 OPT.
Terminal Blocks for Line Connection Connection through 5 poles for R S T N PE conductors
Installable Terminal Blocks Threaded pin joint for 6–12 mm cable lugs from 50 to 300 mm²
Single Phase Sockets (230 VAC 1P+N+PE) 16A / 32A / 63A YES
125A YES
Three Phase Sockets (400 VCA 3P+N+PE) 16A / 32A / 63A YES
125A YES
250A NO
400A NO
630A NO
Sockets Protection IP 67 YES
