Marine Pedestal SMART - C

advanced divider

The SMART-C pedestal, constructed from polymer HDPE with ADT UV protection, is built to endure
harsh marine environments. It offers IP56 and optional IP67 protection for superior durability.
Equipped with a variety of single and three-phase sockets, high-efficiency LED lighting, and secure
lockable access, it addresses diverse power and water distribution needs

  • Built from HDPE with ADT UV protection for marine durability
  • IP56 standard, optional IP67; operates from -30°C to +70°C
  • Equipped with single & three-phase sockets (up to 250A)
  • Includes high-efficiency LED lighting and secure lockable door
  • Supports electricity & water metering with E-Power system compatibility

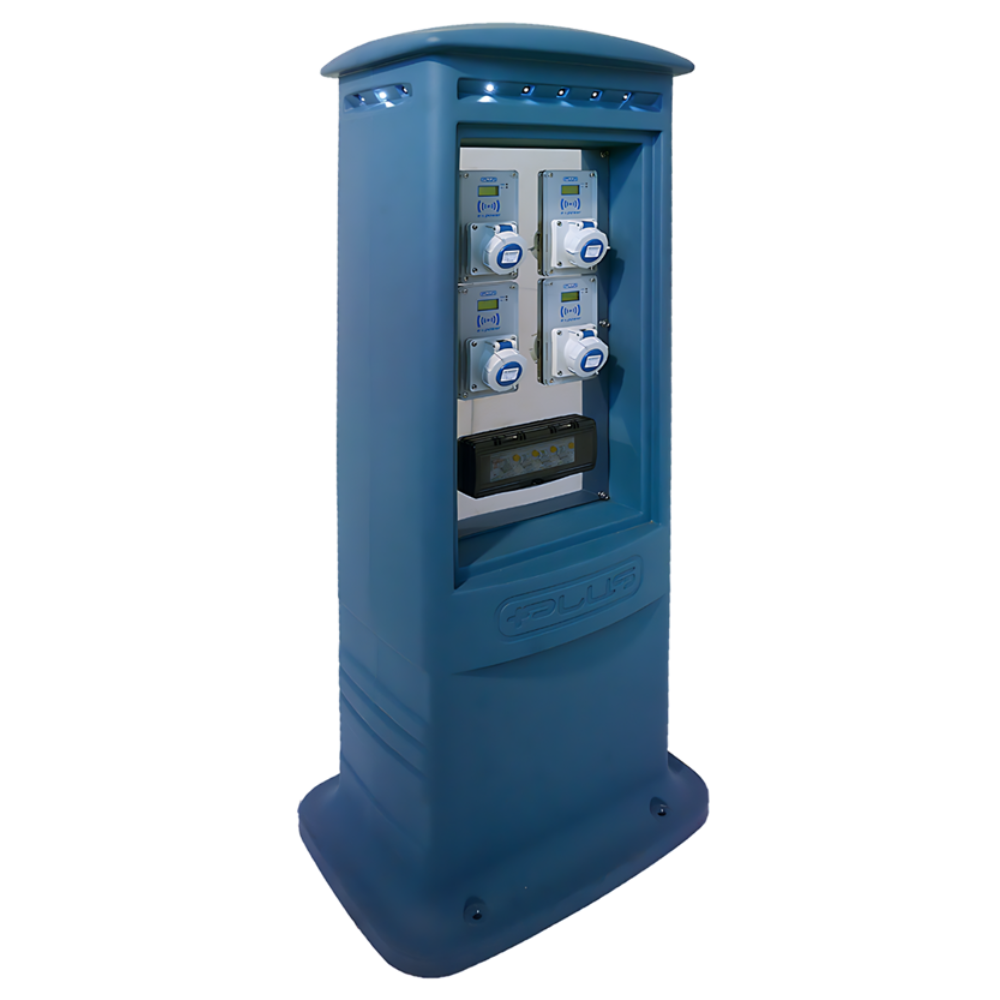

Marine Pedestal SMART-C with power sockets, LED lighting, and IP67 protection for marina utility management
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

With advanced metering options for electricity and water, the SMART-C pedestal is a versatile and reliable solution for modern ports and marinas

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling through quick coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing Material POLYMER HDPE/ADT UV PROTECTION
Dimensions (DxLxH MM) 450x590x1400
Pedestal Protection IP 56 STANDARD YES
IP 67 OPT.
Terminal Blocks for Line Connection Connection through 5 poles for R S T N PE conductors
Installable Terminal Blocks Threaded pin joint for 6–12 mm cable lugs from 50 to 300 mm²
Single Phase Sockets (230 VAC 1P+N+PE) 16A / 32A / 63A YES
125A YES
Three Phase Sockets (400 VCA 3P+N+PE) 16A / 32A / 63A YES
125A YES
250A YES
400A NO
630A NO
Sockets Protection IP 67 YES
