Marine Pedestal SMART

advanced divider

The SMART pedestal is crafted from polymer HDPE with ADT UV protection, ensuring longevity
in demanding marine environments. It offers IP56 and optional IP67 protection for enhanced
durability. Equipped with a range of single and three-phase socket options, high-efficiency LED
lighting, and secure access, it caters to various power and water distribution needs

  • Durable HDPE Body with ADT UV protection for extreme marine environments.
  • IP56/IP67 Protection ensures high resistance to water and dust ingress
  • Flexible Socket Options with single & three-phase outlets up to 400A
  • Advanced Metering for both electricity and water with display counters
  • LED Lighting & Lockable Access for enhanced safety and security

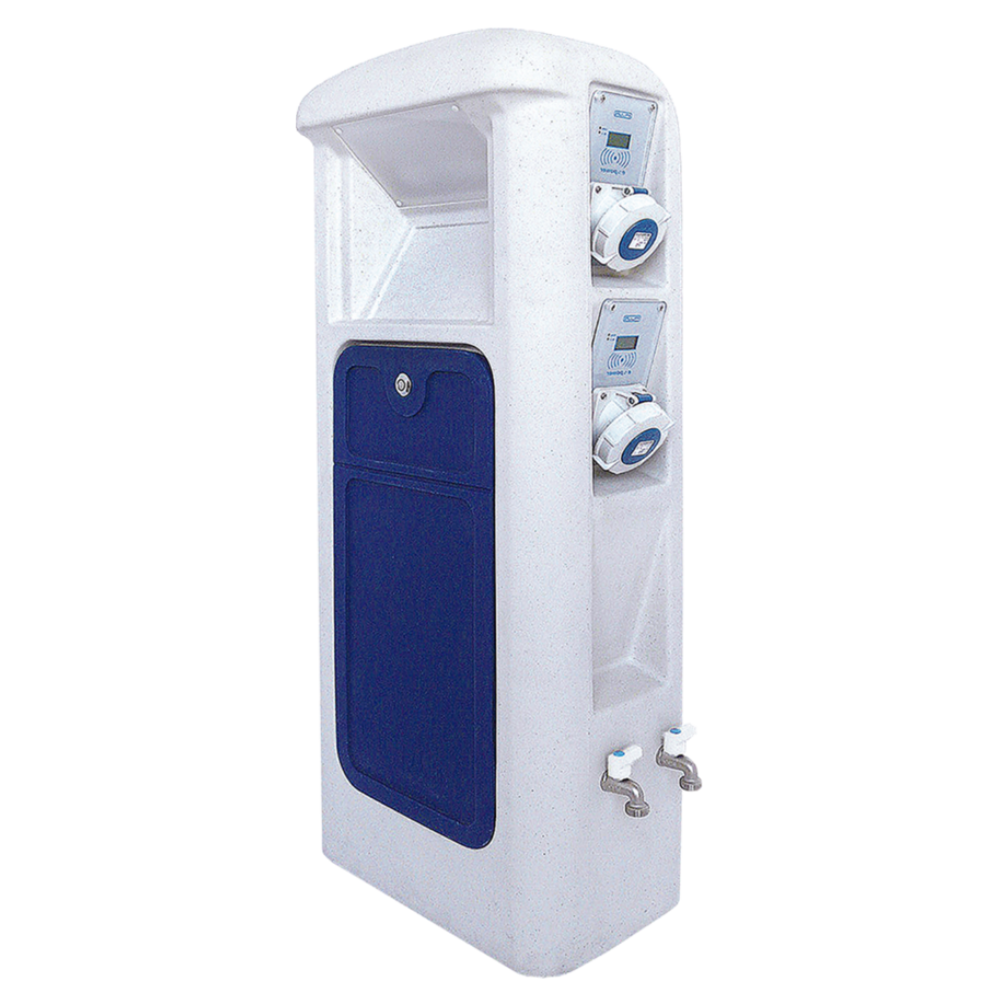

Marine Pedestal SMART with HDPE body, dual power sockets, and water taps
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

Advanced metering systems for monitoring electricity and water usage make the SMART pedestal a versatile and reliable choice for ports and marinas

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling. Through quick coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing Material POLYMER HDPE/ADT UV PROTECTION
Dimensions (DxLxH MM) 270x450x1095
Pedestal Protection IP 56 STANDARD YES
IP 67 OPT.
Terminal Blocks for Line Connection Connection through 5 poles for R S T N PE conductors
Installable Terminal Blocks Threaded pin joint for 6–12 mm cable lugs from 50 to 300 mm²
Single Phase Sockets (230 VAC 1P+N+PE) 16A / 32A / 63A YES
125A YES
Three Phase Sockets (400 VCA 3P+N+PE) 16A / 32A / 63A YES
125A YES
250A YES
400A YES
630A NO
Sockets Protection IP 67 YES
