Marine Pedestal Model S700-L

advanced divider

Model S700-L is built with durable stainless steel and offering IP56 protection, this power pedestal
is designed to withstand harsh marine conditions. It supports various electrical socket configurations,
including single and three-phase options, to meet diverse power needs.

  • Supports single & three-phase sockets up to 125A
  • Lockable access & remote monitoring via E-Power
  • LED lighting & smart metering for power and water
  • AISI 316L stainless steel for marine-grade durability
  • IP56/IP67 & IK10 protection against water, dust, and impact.

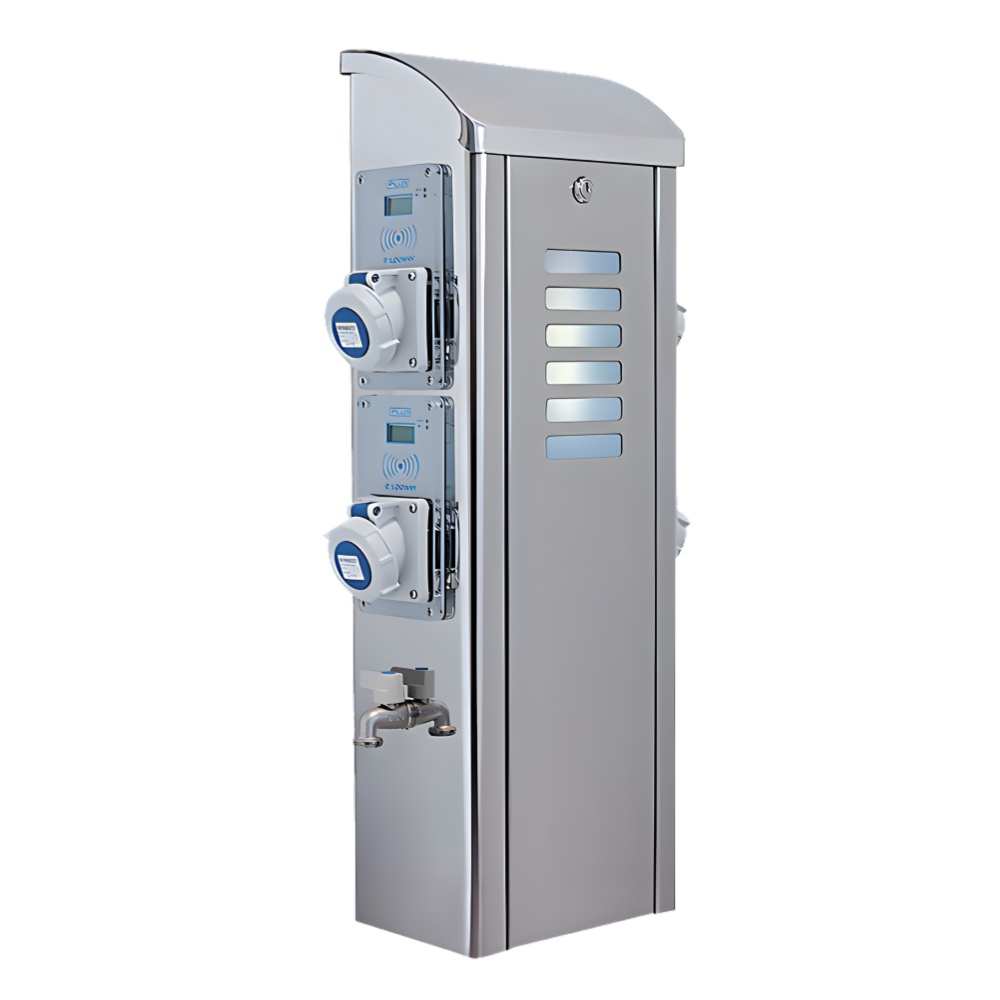

Marine Pedestal Model S700-L with stainless steel casing, IP56 protection, and multiple power sockets for marina applications.
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

Equipped with high-efficiency LED lighting and advanced metering for water and electricity,
it ensures reliable service and ease of monitoring. Ideal for modern ports and marinas,
this pedestal combines safety, convenience, and compliance with CE standards

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing Material AISI 316L
Dimensions (DxLxH MM) 190x265x757
Pedestal Protection IP 56 STANDARD
IP 67 OPT.
Terminal Blocks for Line Connection Connection through 5 poles for R S T N PE conductors
Installable Terminal Blocks Threaded pin joint for 6–12 mm cable lugs from 50 to 300 mm²
Single Phase Sockets (230 VAC 1P+N+PE) 16A / 32A / 63A YES
125A YES
Three Phase Sockets (400 VCA 3P+N+PE) 16A / 32A / 63A YES
125A YES
250A NO
400A / 630A NO
Sockets Protection IP 67 YES
