Marine Pedestal Model S1000-XXL

advanced divider

Model S1000-XXL pedestal, made from AISI 316L stainless steel, is built to endure marine conditions, providing IP56 and optional IP67 protection. It supports a wide range of single and three-phase socket configurations for diverse power needs

  • Built from AISI 316L stainless steel with IP56 & optional IP67 protection
  • Supports multiple socket types: 16A–125A single & three-phase
  • Integrated LED lighting, secure lockable door & 4-point bolt fixing
  • Water distribution with brass valves & quick couplers
  • Advanced electric & water metering with remote monitoring via E-Power

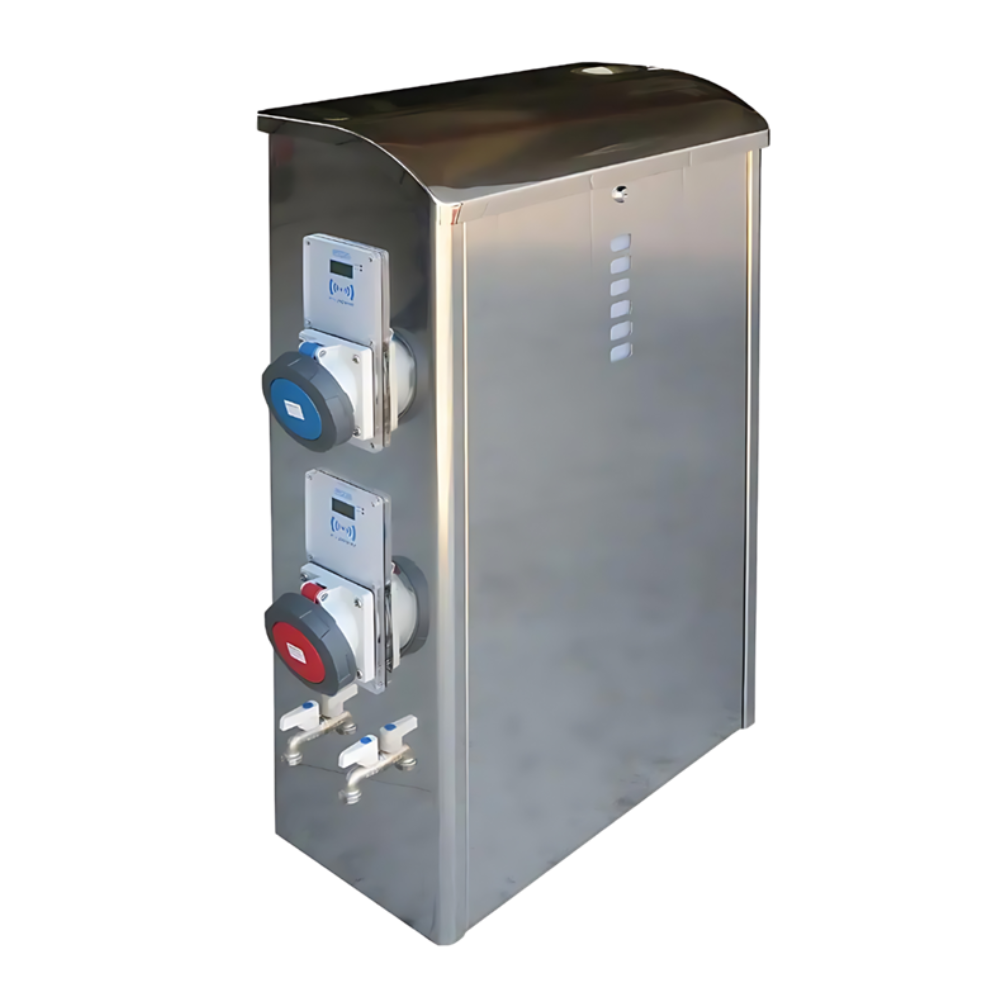

Stainless steel Marine Pedestal Model S1000-XXL with dual power sockets and water outlets.
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

Featuring high-efficiency LED lighting, lockable access, and advanced metering for both water and electricity, the S1000-XXL is a comprehensive solution for utility management in ports and marinas, compliant with CE standards

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling through quick coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing Material AISI 316L
Dimensions (DxLxH MM) 300X600X1000
Pedestal Protection IP 56 STANDARD YES
IP 67 OPT.
Terminal Blocks for Line Connection Connection through 5 poles for R S T N PE conductors
Installable Terminal Blocks Threaded pin joint for 6–12 mm cable lugs from 50 to 300 mm²
Single Phase Sockets (230 VAC 1P+N+PE) 16A / 32A / 63A YES
125A YES
Three Phase Sockets (400 VCA 3P+N+PE) 16A / 32A / 63A YES
125A YES
250A YES
400A YES
630A NO
Sockets Protection IP 67 YES
