Panama Chocks - Deck Mounting and BLW

Our stock consists of various types of PANAMA CHOCKS deck or bullwork mounting in accordance to OCIMF requirements in various sizes.

All materials are covered by Class Certificates.

JIS F - 2017 Panama Chocks Type AC

NOM. SIZE	DIMENSIONS (m.m.)				MASS (Kg)
NOM. SIZE	L	L1	H1	H2	MASS (Kg)
310	310	708	639	541	253
360	360	760	640	542	289
400	400	804	642	545	323
450	450	856	643	547	351
500	500	908	644	549	395

JIS F - 2017 Panama Chocks Type BC

NOM. SIZE	DIMENSIONS (m.m.)				MASS (Kg)
NOM. SIZE	L	L2	L3	H1	MASS (Kg)
310	310	734	652	684	276
360	360	788	701	688	305
400	400	832	750	692	344
450	450	886	802	696	385
500	500	940	854	700	422

Panama Bow chock - EU Type - Deck Mounting

NOM. SIZE	DIMENSIONS (m.m.)					MASS (kgr.)
NOM. SIZE	A	B	C	D	E	MASS (kgr.)
600x450	600	450	1360	1000	560	740

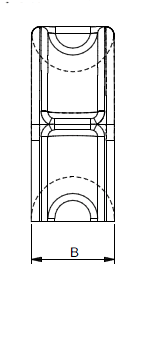

JIS F - 2005 Closed Chocks Deck Mounting

NOM. SIZE	DIMENSIONS (m.m.)					MASS (kgr.)	Dia. of Wire Rope (mm)
NOM. SIZE	L	L1	B	H	H1	MASS (kgr.)	Dia. of Wire Rope (mm)
100	100	170	60	76	141	4	14
150	150	250	90	110	205	11	16
200	200	340	120	150	280	24	18
250	250	434	160	200	372	48	20
300	300	528	200	250	464	82	22
350	350	600	220	250	485	103	24
400	400	672	240	250	506	136	26
450	450	746	260	250	528	184	30
500	500	820	280	250	550	232	36
