Marine Pedestal SMART - X

advanced divider

The SMART-X pedestal is crafted from polymer HDPE with ADT UV protection, designed for durability
in harsh marine conditions. It offers IP56 protection and supports various single and three-phase
socket options to meet different power needs

  • IP56/67-rated HDPE body ensures durability in harsh marine conditions
  • Supports single-phase sockets (16A/32A/63A); three-phase not included
  • High-efficiency LED lighting with secure lockable access
  • Water outlets via ½" nickel-plated brass ball valves.
  • Equipped for progressive kWh display, prepaid and remote metering

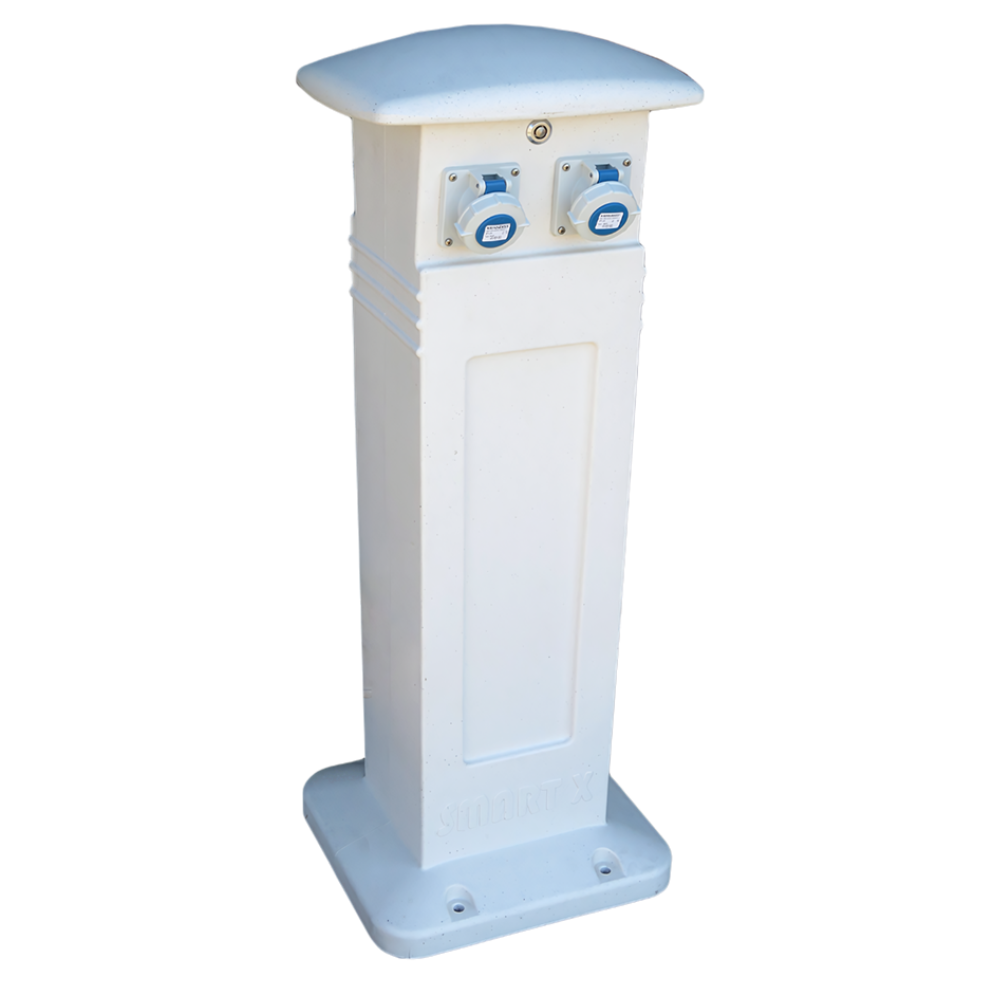

Marine Pedestal SMART - X with multiple sockets, water taps, and LED lighting for marina use.
Submit RFQ (Request for Quotation)

Features

  • OPERATING TEMPERATURE: -30°C +70°C
  • IMPACT RESISTANCE: IK 10
  • ACCESS: Through lockable door
  • FIXING IN PLACE: With 4 x M10 bolts
  • LIGHTING: High efficiency LED
  • PROTECTION: Through fuse or 2A MTD

Featuring high-efficiency LED lighting, secure lockable access, and advanced metering capabilities for electricity and water, the SMART-X is a practical and reliable choice for ports and marinas

  • CONNECTION TO WATER MAIN: Through ¾” or ½” female coupling through quick coupling for 20mm polyethylene pipes
  • CONNECTION TO WATER OUTLETS: ½” nickel-plated brass ball valves. Quick coupling valves for standard gardening connector
  • ELECTRICITY METER: Progressive with display of kWh used
  • WATER METER: Liter-counter with display of consumption for each user
  • PREPAID SYSTEM: Intelligent electric E-Power socket
  • REMOTE METERING: Through E-Power with fieldbus communication

Specifications

Casing MaterialPOLYMER HDPE/ADT UV PROTECTION
Dimensions (DxLxH MM)318x368x974
Pedestal ProtectionIP 56 STANDARDYES
IP 67OPT.
Terminal Blocks for Line Connection
Installable Terminal Blocks
Single Phase Sockets (230 VAC 1P+N+PE)16A / 32A / 63AYES
125ANO
Three Phase Sockets (400 VCA 3P+N+PE)16A / 32A / 63AYES
125ANO
250ANO
400ANO
630ANO
Sockets ProtectionIP 67YES
