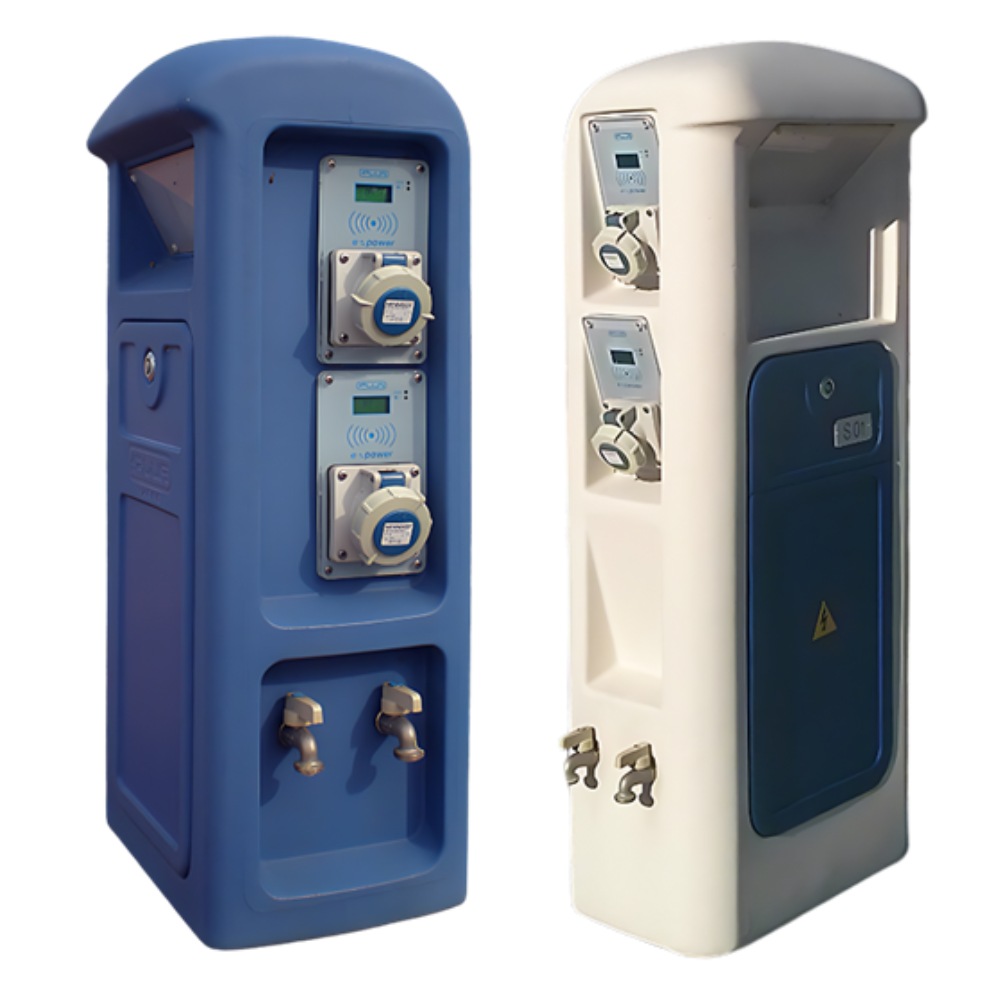

The SMART E-POWER pedestal combines RFID technology with prepaid and centralized billing for energy and water. Users can activate via transponder, SMARTPLUS CLOUD, or GSM. Built with IP67 protection, shock-resistant materials, and multilingual support, it features a high-contrast LCD for real-time consumption data—ideal for modern marinas and ports
| Sockets | Electrically interlocked 240VAC 16-32-63-125 A / 400 VAC 3P+N+PE up to 1000 A and more |
|---|---|
| Protection Class | IP67 |
| Billing | With prepaid and/or centralized billing system |
| Activation | By means of a transponder (contact-less key), remote with SMARTPLUS CLOUD, remote with GSM |
| Communication | RS485 Baud-rate 19200 MOD-BUS protocol, cable length: 2400mt max / EIB-KONNEX BUS |
| Language | Italian, English, French, German, Spanish, customizable |
| Diagnostics | Local with results on display |
| Electricity Metering | Electronic meter |
| Water Metering | Plastic litre-counter turbine |
| Operation | Prepaid: the user’s credit is being loaded onto the transponder used to activate the supply |
| Billing | Standalone: consumption and balance shown on pedestal; Centralized: via cloud or GSM |
| Transponder Top-up | Recharge via automatic system using banknote or card |
| Material | Shock-resistant plastic |
| Display | 16-character translative high-contrast backlit LCD (extended temperature operation) |
| Transponder Reader Module | Intelligent, stand-alone |
| Buzzer | Piezoelectric sounder for monitoring transactions and alarms |
| Displayed Data | ON-OFF-FAULT socket status, electricity-water metering, credit balance, diagnostics |
| Operating Temperature | -20°C to +90°C |
E-POWER is an innovative and intelligent socket with an integrated system for measuring energy
and water consumption, it uses RFID (Radio Frequency Identification) technology that is able to
identify a user and apply a prepaid payment system
