Serving the Marine Industry since 1936

Mooring Tails | Double Braided Mooring Tails

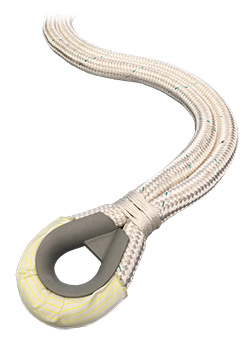

Double Braided Mooring Tails

NIKA-DOUBLE BRAIDED Tails

Nika-Double Braided tails are produced from the best quality fibers like Nikasteel^Ⓡ, Polyester and Nylon. The Double braided construction offers maximum strength at a lower diameter while guaranteeing maximum protection against abrasion.

Diam (mm)	MBL (tn) NYLON	MBL(tn) POLYESTER	MBL(tn) MIXED
48	58	55	46
52	69	66	53
56	79	76	62
60	91	87	69
64	104	100	80
68	117	114	91
72	131	126	101
76	148	141	112
80	163	158	123
84	178	174	138
88	194	189	151
96	236	226	172
104	273	263	210

NIKA-DUALFORCE Tails

Nika-DualForce tails combine unique characteristics in their performance. They exhibit higher breaking strengths due to the balanced 50%-50% w/w core-cover structure and they are much more robust than typical Double Braided ropes resulting in higher useful lifetime.

Diam (mm)	MBL (tn) NYLON	MBL(tn) POLYESTER	MBL(tn) MIXED
48	60	57	48
52	71	68	55
56	81	79	64
60	94	89	71
64	108	104	83
68	120	116	94
72	135	129	103
76	153	145	116
80	166	163	128
84	183	178	145
88	198	195	157
96	240	229	180
104	277	268	217
