Stockless (Normal Power) Anchors

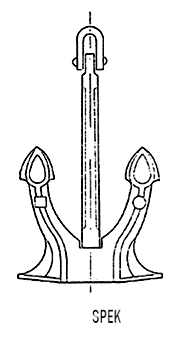

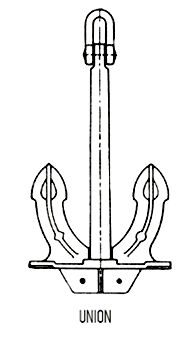

We supply commonly used stockless anchors like Hall, Spek and Union types, but we can provide, at a short notice, any type needed.
Comprehensive stocks of new and second hand anchors and chains are held in Piraeus and China and these stocks allow KATRADIS to provide the quickest delivery service possible worldwide.
Quality Standards
It's possible to classify the various anchor types based upon certain characteristics such as fluke area, shank, stabilizers etc.
Anchor type efficiency is shown at the below equation:
HOLDING CAPACITY = WEIGHT * EFFICIENCY.
Common stockless anchors belong to Class F with efficiency ranging from 4-6.
The performance of an anchor is affected by many different factors, to name a few: fluke area and design, shank design, soil conditions, load conditions, type of mooring line.
| PROOF LOAD, Kgf | |||||||
|---|---|---|---|---|---|---|---|
|
Weight of Anchor (kgs) |
Proof Test |
Weight of Anchor (kgs) |
Proof Test |
Weight of Anchor (kgs) |
Proof Test |
Weight of Anchor (kgs) |
Proof Test |
| 50.00 | 2370 | 900.00 | 18600 | 3600 | 54800 | 6900 | 80700 |
| 55.00 | 2570 | 950.00 | 19500 | 3700 | 55800 | 7000 | 81300 |
| 60.00 | 2760 | 1000.00 | 20300 | 3800 | 56800 | 7200 | 82600 |
| 65.00 | 2950 | 1050.00 | 21200 | 3900 | 57800 | 7400 | 83800 |
| 70.00 | 3130 | 1100.00 | 22000 | 4000 | 58800 | 7600 | 85000 |
| 75.00 | 3300 | 1150.00 | 22800 | 4100 | 59800 | 7800 | 86100 |
| 80.00 | 3460 | 1200.00 | 23600 | 4200 | 60700 | 8000 | 87000 |
| 90.00 | 3700 | 1250.00 | 24400 | 4300 | 61600 | 8200 | 88100 |
| 100.00 | 3990 | 1300.00 | 25200 | 4400 | 62500 | 8400 | 89200 |
| 120.00 | 4520 | 1350.00 | 26000 | 4500 | 63400 | 8600 | 90300 |
| 140.00 | 5000 | 1400.00 | 26700 | 4600 | 64300 | 8800 | 91400 |
| 160.00 | 5430 | 1450.00 | 27500 | 4700 | 65100 | 9000 | 92400 |
| 180.00 | 5850 | 1500.00 | 28300 | 4800 | 65800 | 9200 | 93400 |
| 200.00 | 6250 | 1600.00 | 29800 | 4900 | 66600 | 9400 | 94400 |
| 225.00 | 6810 | 1700.00 | 31300 | 5000 | 67400 | 9600 | 95300 |
| 250.00 | 7180 | 1800.00 | 32700 | 5100 | 68200 | 9800 | 96200 |
| 275.00 | 7640 | 1900.00 | 34200 | 5200 | 69000 | 10000 | 97100 |
| 300.00 | 8110 | 2000.00 | 35600 | 5300 | 69800 | 10500 | 99300 |
| 325.00 | 8580 | 2100.00 | 36900 | 5400 | 70500 | 11000 | 101500 |
| 350.00 | 9050 | 2200.00 | 38300 | 5500 | 71300 | 11500 | 103600 |
| 375.00 | 9520 | 2300.00 | 39600 | 5600 | 72000 | 12000 | 105700 |
| 400.00 | 9980 | 2400.00 | 40900 | 5700 | 72700 | 12500 | 107800 |
| 425.00 | 10500 | 2500.00 | 42200 | 5800 | 73500 | 13000 | 109900 |
| 450.00 | 10900 | 2600.00 | 43500 | 5900 | 74200 | 13500 | 111900 |
| 475.00 | 11400 | 2700.00 | 44700 | 6000 | 74900 | 14000 | 113900 |
| 500.00 | 11800 | 2800.00 | 45900 | 6100 | 75500 | 14500 | 115900 |
| 550.00 | 12700 | 2900.00 | 47100 | 6200 | 76200 | 15000 | 117700 |
| 600.00 | 13500 | 3000.00 | 48300 | 6300 | 76900 | 15500 | 119500 |
| 650.00 | 14300 | 3100.00 | 49400 | 6400 | 77500 | 16000 | 120900 |
| 700.00 | 15200 | 3200.00 | 50500 | 6500 | 78200 | 16500 | 122200 |
| 750.00 | 16100 | 3300.00 | 51600 | 6600 | 78800 | 17000 | 123500 |
| 800.00 | 16900 | 3400.00 | 52700 | 6700 | 79400 | 17500 | 124700 |
| 850.00 | 17800 | 3500.00 | 53800 | 6800 | 80100 | 18000 | 125900 |
